S2 screen

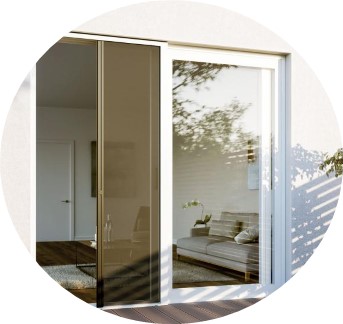

The  S2 Insect Screen offers insect protection, fresh air, breezes and uninterrupted views for smaller openings. There are no pleats or fixed panels to interrupt the view and when not in use the screen retracts discreetly into the frame, removing visual distractions whilst also protecting it from damage, dust or dirt. The S2 Insect Screen can be paired with all new and existing doors and windows in a renovation or new build.  The S2 Screen is perfect for smaller openings. It can be fitted to the inside or outside of the opening, so you can maximize inside-outside living to its full potential.

 Available in a choice of two screen configurations:

Single: a screen extending from one side of the frame across the entire opening, up to 51 ⅛” (1300mm) wide

Double: two screens meeting in the middle up of the opening up to 102 ⅜” (2600mm) wide

Max Frame Width:
Frame width single screen = min. 25-3/16” / max. 51-3/16” (640-1300mm)
Frame width double screen = min. 47-1/4” / max. 102-3/8” (1200-2600mm)
Frame height single screen = min. 27-9/16” max. 124” (700 – 3150mm)
Frame height double screen = min. 27-9/16” max. 124” (700 – 3150mm)

Single

Double

S2 Downloads

Literature

Product Details

Material Options

Standard Weave
Our standard weave screen keeps insects like moths, flies and mosquitoes outside, while standing the test of time with a durable polyester/PVC mesh construction.
Tight Weave
Made from the same durable material as our standard weave but features a smaller aperture to protect homeowners against tiny insects like midges.
