Thermally Broken Aluminum Folding Door System

We are so excited to announce that our new Thermally Broken Aluminum Folding Door System is tested to NAFS 2022! This system has concealed hinges and handles, is bottom rolling with top wheel guides for smooth transitions and a special gasket system that protects your fingers when doors are in motion.

*All Aluminum profiles are power coated & UV resistant.

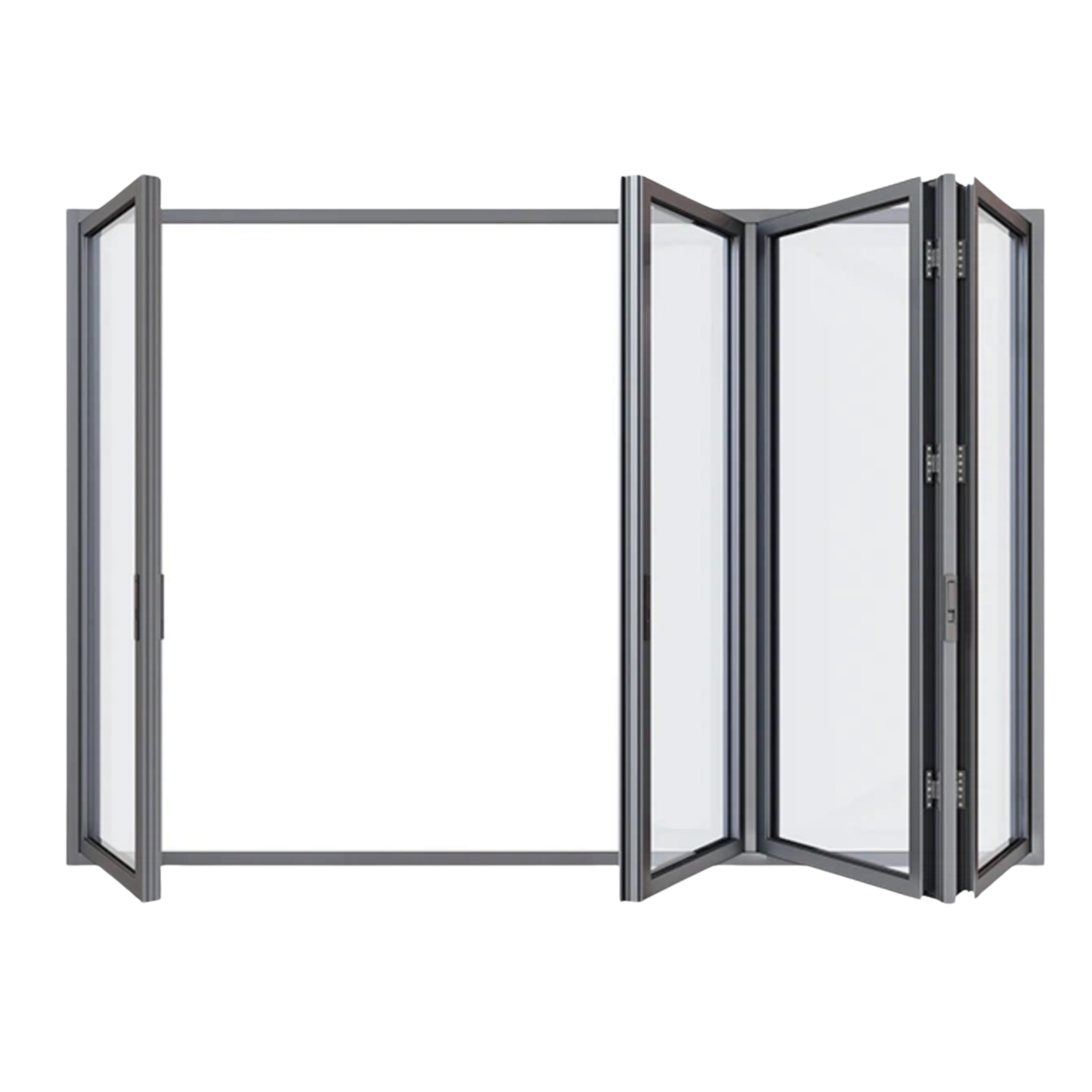

eca500 open

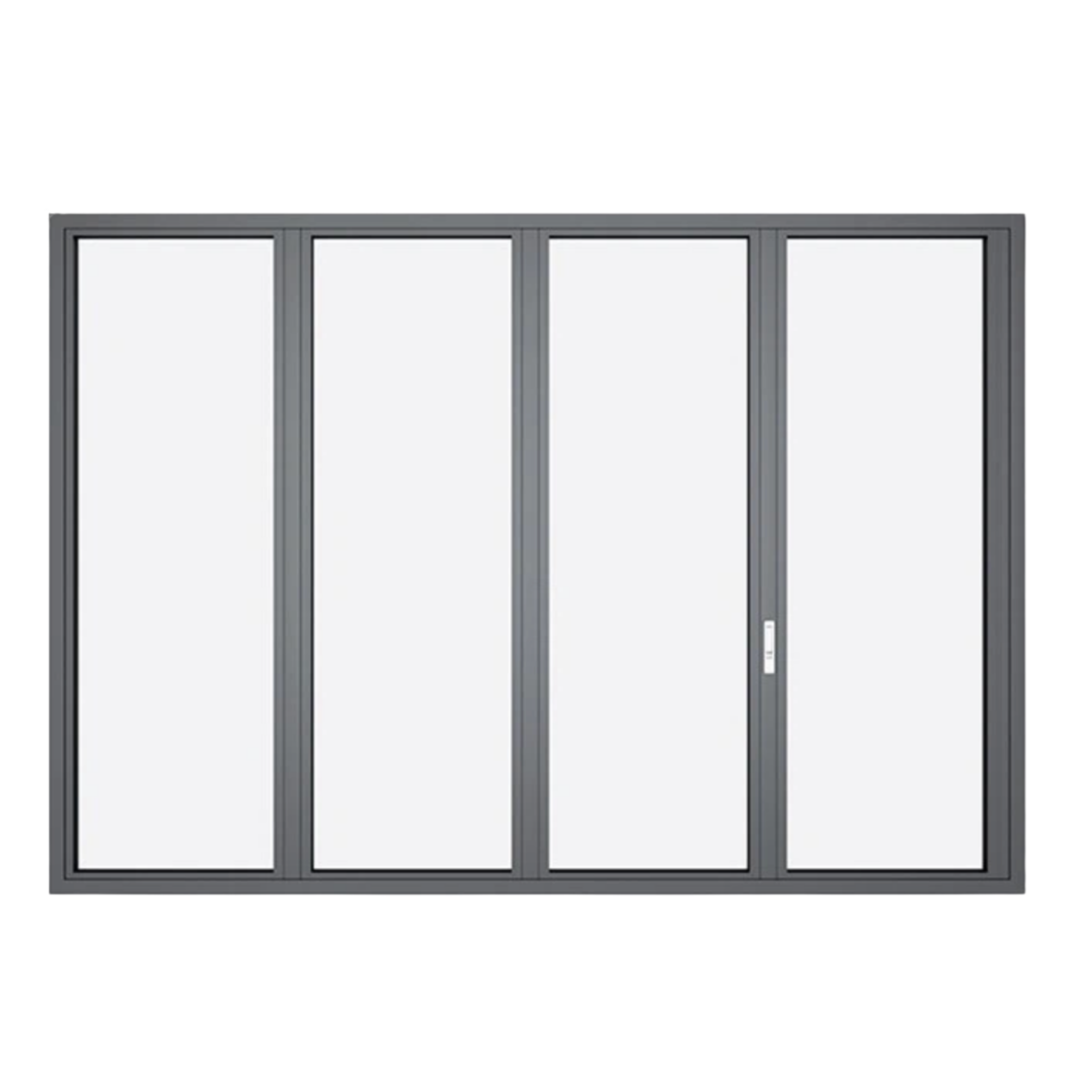

eca500 closed

Series ECA500

NAFS 2022 TESTED

OUTSWING
ECLIPSE 1L3R

1.POSTIVE DESIGN PRESSURE (DP)
( = 1200 PA) (25.06 PSF)

2. NEGATIVE DESIGN PRESSURE (DP)
(= 1200 PA) ( 25.06 PSF)

3. WATER PENETRATION
RESISTANCE TEST PRESSURE
(= 180 PA ) ( 3.76 PSF) PGLS PG25

4, AIR INFILTRATION / EXFILTRATION
(=A2 Level)

SIZE TESTED 3750mm X 2530mm OSM
(145 1/2″ X 99 1/2″)

STANDARD USED
AAMA/WDMA/CSA 101/I.S.2/A440:22

SPECIFICATION
TESTED IN ACCORDANCE TOAAMA / WDMA / CSA101 / I.S.2/ A440:22

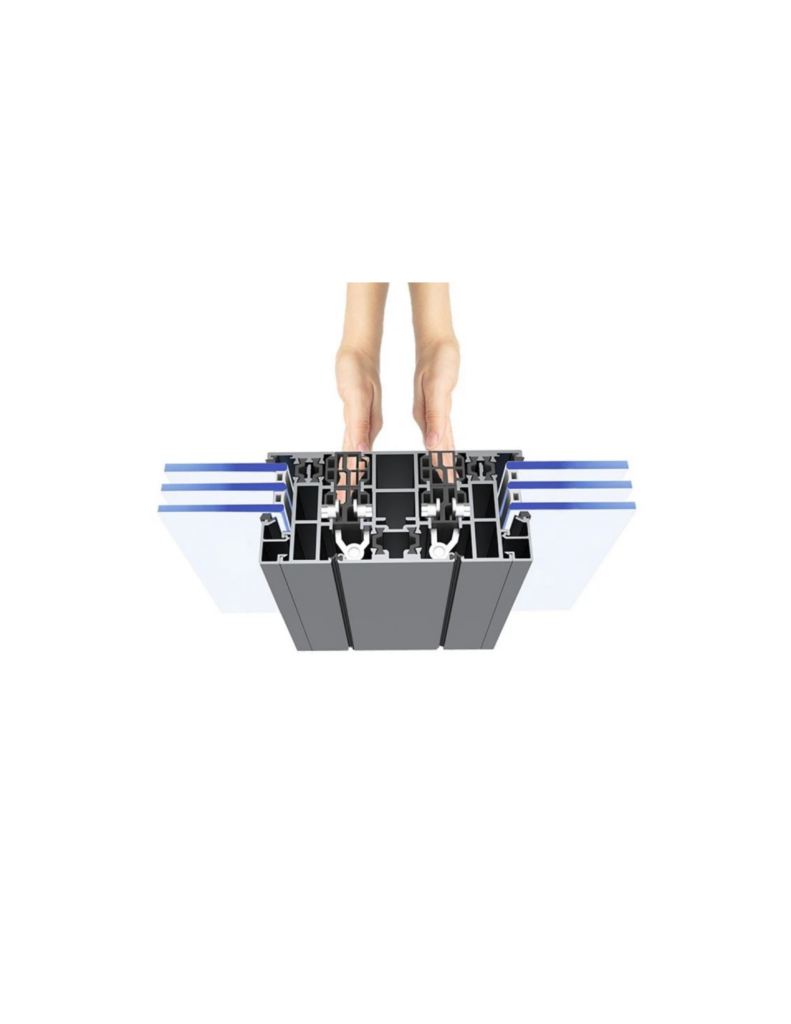

Special gasket design, protecting your fingers when doors are closing
